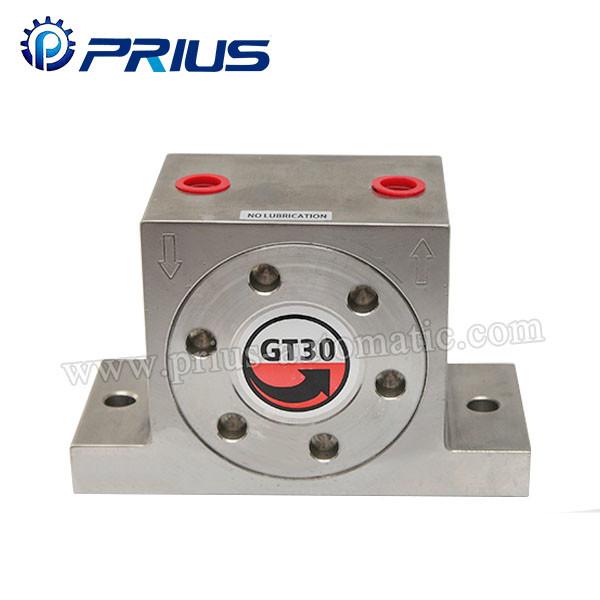

Stainless Steel Pneumatic Components GT series Gear Turbine Vibrator

GT pneumatic turbine vibrator with body material aluminum alloy, inlet and exhuasting port size 1/8”G or NPT,working frequency 46000cycles/Minute at 6Bar,centrifugal force 2910N at 6Ba

Quick Detail:

* GT-8 Pneumatic turbine vibrator
* Body material Extruded Aluminium Alloy
* Body material stainless steel available
* Inlet and exhuasting port size 1/8”G,NPT
* Working frequence and centrifugal force can be adjustable by air pressure
* High frequence up to 46000cycles/Minute at 6 Bar
* Centrifugal force up to 2910N
* Low noise 60~75Dba
* High temperature-resistance up to 120℃
* Immediately start,stop,fast response
* Easy to operate,safety application
* Easy to change bearing parts
* Lubrication free

Applications:

GT Pneumatic turbine vibrator used widely in feed material conveyor,vibration screening,vibrating hopper,packaging filling,foundry sand mold vibration etc

1, Extruded Aluminium Alloy Body
2, Hard Coated Aluminium Turbine Wheel
3-4, High Density Mass Positive Movement
5-7, Cavities Giving Negative Movement
8, Air Inlet Port
9, Air Exhausting port
10, Base Mounting Holes
11, Special Pre-Lubricated Matching Sealed Bearings
Hard Coated Aluminium Endplates
12, With Left direction Thread
13, With Right direction Thread
