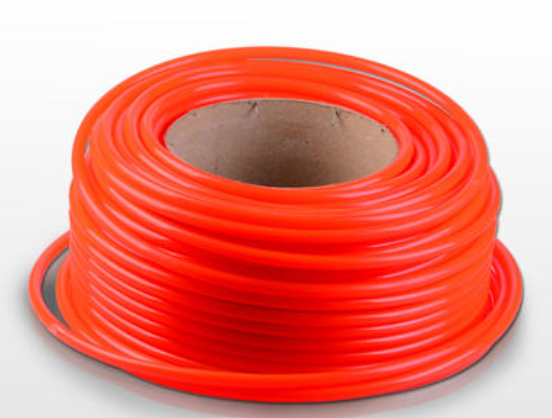

PE Poly Ethylene Tube Non - toxic Pneumatic Tube , 20Bar Nylon Air
Hose
High Flexible PE Poly Ethylene air and water tube hardness 95/98A O.D
size.3mm,4mm,5mm,6mm,8mm,10mm,12mm,14mm,16mm e.g PU8x5-100M-BU/ inch size Out Dia.1/8”,5/32”,1/4”,5/16”,3/8”,1/2” with various tube
colours for option
Quick Detail:
* PE series air hose and water tube
* Thermoplastic Polyurethane polyester and polyether material
* hardness 95A,98A
* outer Dia. Metric size 3mm,4mm,5mm,6mm, 8mm, 10mm,12mm, 14mm,16mm
* inch size Out Dia.1/8”,5/32”,1/4”,5/16”,3/8”,1/2”
* conform to ROHS environment protection requirement
* high flexibility for piping working
* small bending radius,applicable for occasions of big bending
* superior anti-vibration,anti-corrosion,anti-weather,anti-Chemical
and anti-oil
* outstanding anti-weater,anti-curve and anti-fatigue
* wide applicable range of tempeature
* various tube colours for option make it easier to distinguish
pipes one another
* anti-UV class reach up to 3.5,maintain the colour even in outdoor
application
* low absorb rate,low physical performance deterioration and low
changeable rate of measurement
* non-toxic,tastless
* polyether with property of good hdrolyzing resistance, fungus
resistance
Tag: Thermoplastic Polyurethane Tube,PU tube,Pneumatic Air hose
Applications:
PE Air hose and water tube used widely in industrial area like
automotive,textile,air compressor,painting,welding,hardware tools,
agriculture, Food,medicine,civil engineering,farming industrial,
landscape irrigation, electronic industrial etc
Specifications:
1, Material: Thermoplastic Polyurethane
2, Working Fluids:Air,water,oil
3, Working Pressure:-0.2bar~12bar
4, Working Temperature:-20~80℃
| MODEL NO | O.D | I.D | Tolerance (mm) | THICKNESS (mm) | BURSTING PRESSURE (BAR) | WORKING PRESSURE (BAR) | BENDING RADIUS (mm) | KGS/PC | PCS/CARTPM | VOLUME |
| PU3X2/200M | 3 | 2 | 0.1 | 0.5 | 30 | 10 | 8 | 1.4 | 10 | 0.09 |
| PU4×2.5/200M | 4 | 2.5 | 0.1 | 0.75 | 30 | 10 | 10 | 1.9 | 10 | 0.09 |
| PU5X3/200M | 5 | 3 | 0.1 | 1 | 30 | 10 | 8 | | 6 | 0.09 |
| PU6×4/200M | 6 | 4 | 0.1 | 1 | 30 | 10 | 15 | 3.9 | 6 | 0.09 |
| PU8×5/100M | 8 | 5 | 0.1 | 1.5 | 30 | 10 | 20 | 3.7 | 6 | 0.09 |
| PU8×5.5/100M | 8 | 5.5 | 0.1 | 1.25 | 24 | 8 | 20 | 3.3 | 6 | 0.09 |
| PU8×6/100M* | 8 | 6 | 0.1 | 1 | 18 | 6 | 30 | 2.8 | 6 | 0.09 |
| PU10×6.5/100M | 10 | 6.5 | 0.12 | 1.75 | 30 | 10 | 30 | 5.6 | 4 | 0.09 |
| PU10×7/100M* | 10 | 7 | 0.12 | 1.5 | 24 | 8 | 32 | 5.1 | 4 | 0.09 |
| PU10×8/100M* | 10 | 8 | 0.12 | 1 | 18 | 6 | 35 | 3.6 | 4 | 0.09 |
| PU12×8/100M | 12 | 8 | 0.15 | 2 | 30 | 10 | 35 | 7.8 | 4 | 0.12 |
| PU12×9/100M* | 12 | 9 | 0.15 | 1.5 | 18 | 6 | 40 | 6.2 | 4 | 0.12 |
| PU16×12/100M | 16 | 12 | 0.15 | 2 | 24 | 8 | 40 | 11 | 2 | 0.12 |
| PU1/8-200M | 3.2 | 2 | 0.1 | 0.6 | 30 | 10 | 8 | 1.58 | 10 | 0.09 |
| PU5/32-200M | 4 | 2.5 | 0.1 | 0.75 | 30 | 10 | 10 | 1.9 | 10 | 0.09 |
| PU1/4-200M | 6.35 | 4.57 | 0.1 | 0.9 | 30 | 10 | 15 | 3.9 | 6 | 0.09 |
| PU5/16-100M | 8 | 5 | 0.15 | 1.5 | 30 | 10 | 20 | 3.7 | 6 | 0.09 |
| PU3/8-100M | 9.6 | 6.5 | 0.12 | 1.5 | 21 | 7 | 30 | 4.8 | 4 | 0.09 |
| PU1/2-100M | 12.6 | 9.6 | 0.15 | 1.5 | 21 | 7 | 40 | 6.6 | 4 | 0.12 |
| RDERING CODE | | |
| PU | 8x5 | 100M | BU |
| Type | O.Dx I.D Metric Size And Inch Szie | Meters Per Roll | Colours |
| PU:TPU Tube | 3x2 | 200M/ROLL | BU:BLUE |
| 4x2.5 |
| 5x3 |
| 6x4 | B:BLACK |
| 8x5 | 100M/ROLL |
| 8x5.5 |
| 8x6 | R:RED |
| 10x6.5 |
| 10x7 |
| 10x8 | Y:YELLOW |
| 12x8 |
| 14x10 |
| 16x12 | T:TRANSPARENT |
| 1/8" | 200M/ROLL |
| 5/32" | G:GREEN |
| 1/4" |
| 5/16" | 100M/ROLL | TBU:BLUE TRANSPARENT |
Competitive Advantage:
Our product features:
| Our Services Guarantee: |
1) Competitive price with good quality
| 1) Prompt respond (Reply with 24 hours) |
| 2) Much ODM Experience | 2) Free Samples(amount <$20) with freight collect |
3) Fashion and Hard Packaging
| 3) Professional Sales |
| 4) New Factory with New Machine | 4) Photos/videos are available during production. |
| 5) Prompt Delivery Date | 5) Loading inspection, and send loading photos before shipment. |
