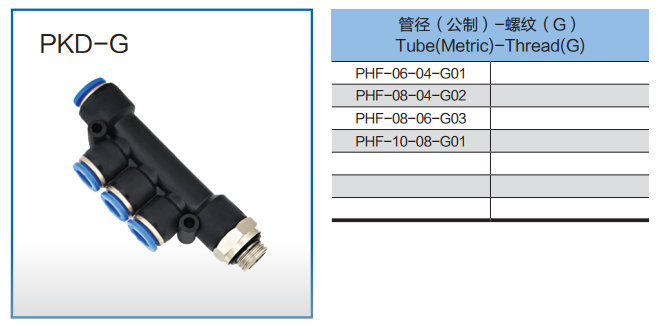

PKD-G Type Five Way male G thread Tube Dia - down Tee Brass Tube
Fitting
One touch quick push-in fitting straight,elbow,tee,branch
tee,plug,splicer,triple,banjo,reduction type,flow regulating
type,swivel type,stop type,check type,bulkhead type,tube size
4mm~16mm,inch size 5/32”~1/2”,thread 1/8”~1/2” PT,G,NPT,Metric
thread,brass nickle plated body material e.g PC8-G02
Quick Detail:
* One touch quick push-in fitting
* Body material brass nickle plated
* Housing material PBT,white colour and black colour selectable
* Lock claw material stainless steel,tight and stable
* Round and oval sleeve for option,colour in black and blue
selectable
* Fast installation,easy and flexible connecting,saving space
* Diversfied model satisfy any need of piping work
* PTFE leak proof coated on thread to ensure good sealing
peformance
* Threads available in G,PT,NPT,METRIC
* Tube size available metric 4,6,8,10,12,16 inch
5/32,3/16,1/4,5/16,3/8,1/2
* Ttraight,tee,branch tee,run tee,elbow,universal
elbow(Banjo),plug,splicer,reduction,flow regulator,swivel
type,triple type,thread extended type,bulkhead type,check type,stop
type
| Fluid Type | Air, Vacuum |
| Operating Pressure | 0~10.2kgf/cm2(0~1.0MPa) |
| Negative Pressure | -750mmHg(10Torr) |
| Max. Pressure | 15.3kgf/cm2(1.5MPa) |
| Operating Temperature Range | 0~60℃ |
| Tube Material | Nylon and Polyurethane |
Tube Outer DIA
| | Metric Size | Inch Size |
| Code | 4 | 6 | 8 | 10 | 12 | 16 | 5/32 | 3/16 | 1/4 | 5/16 | 3/8 | 1/2 |
| Dia. | Φ4 | Φ6 | Φ8 | Φ10 | Φ12 | Φ16 | Φ5/32 | Φ3/16 | Φ1/4 | Φ5/16 | Φ3/8 | Φ1/2 |
Thread Type & Size
| Code | M5 | M6 | M8 | M10 | M12 | M12A | M14 | M16 | M20 |
| Dia. | 4mm | 6mm | 8mm | 10mm | 12mm | 14mm | 16mm | 1/8inch | 5/32inch |
| | 55º Taper Pipe Thread (PT) | G - Thread |
| Code | 1 | 2 | 3 | 4 | 6 | G01 | G02 | G03 | G04 | G06 |
| Dia. | R1/8 | R1/4 | R3/8 | R1/2 | R3/4 | R1/8 | R1/4 | R3/8 | R1/2 | R3/4 |
| | UNF | NPT1/8 |
| Code | U10 | N01 | N02 | N03 | N04 | N06 |
| Size | 10-32UNF | NPT1/8 | NPT1/4 | NPT3/8 | NPT1/2 | NPT3/4 |
